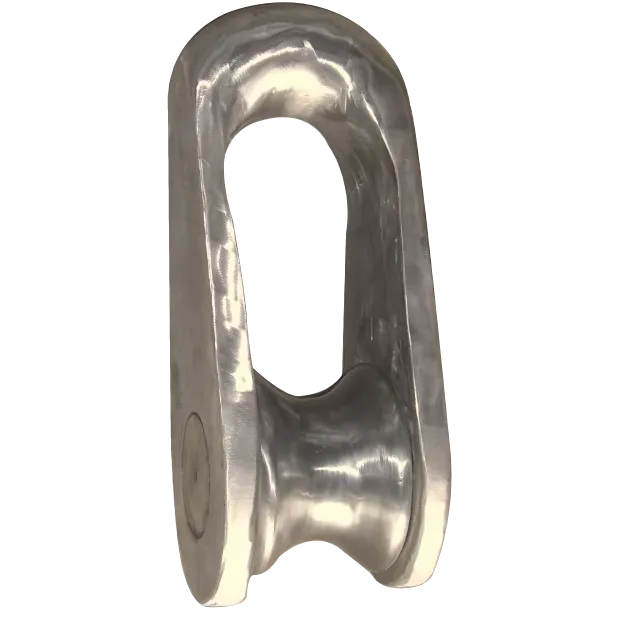

Mandal Fairlead Shackles
Mandal Fairlead Shackles for reliable mooring. DNV Type Approved, proof-tested, and certified for 90T, 120T, and custom sizes. Sleek stainless steel design passes fairleads easily, accommodating both wire and fiber ropes. Perfect for secure offshore and marine operations
Description:
- Sizes: 90T, 120T, Custom Sizes.
- Material: High Tensile Steel.
- Finish: Galvanized.
- Certificate: DNV, 3.1 certificate.
- Application: Mooring.
- Packing: Ply-wooden Cases.
- Shipment: By Air, By Sea, or By Express upon the requests.
- Note: Wire Rope in the sheave.Fiber Rope around the body.
Specifications:

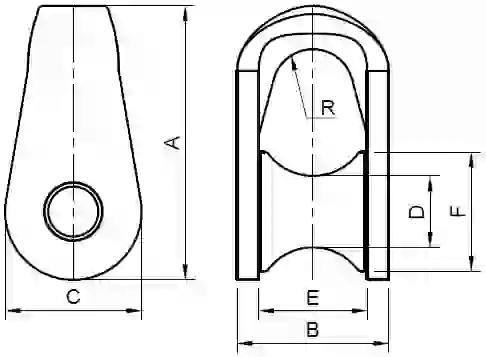

Drawing:
Technical Data Sheet:
| Shackle | Tail | A | B | C | D | E | F | R | BL T | PL T | kg/ea |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 90 M | 56-64 | 255 | 97 | 120 | 65 | 67 | 100 | 34 | 90 | 45 | 7.8 |
| 120 M | 68-80 | 300 | 121 | 130 | 82 | 90 | 128 | 45 | 120 | 90 | 13.3 |

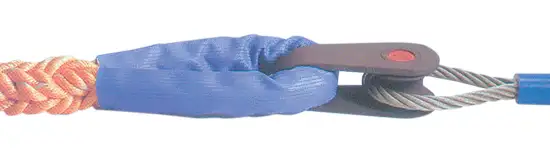

Usage Instructions:
